IrisPRO Pave

Achieve complete integration of industry-leading subsystems including the ICC inertial profiler, LCMS-2, Ladybug 6 or 5+, Basler 4K cameras, Hemisphere GNSS, iXBlue ATLANS, Applanix POS/LV, and more.

Data Collection - Made Faster

Collecting pavement data on your network – just driving your roads – usually accounts for the majority of time and cost on a road condition survey. Consider how much time your crews will save when the collection equipment is easy to calibrate and maintain, the collection core keeps everything tightly and effortlessly synchronized, the subsystems play well together, the overall system is reliable, and the collection software tracks the routes to be collected and helps the crew navigate. Contact us today to learn more about the Iris (Integrated Road Information System) platform and about ICC Drive.

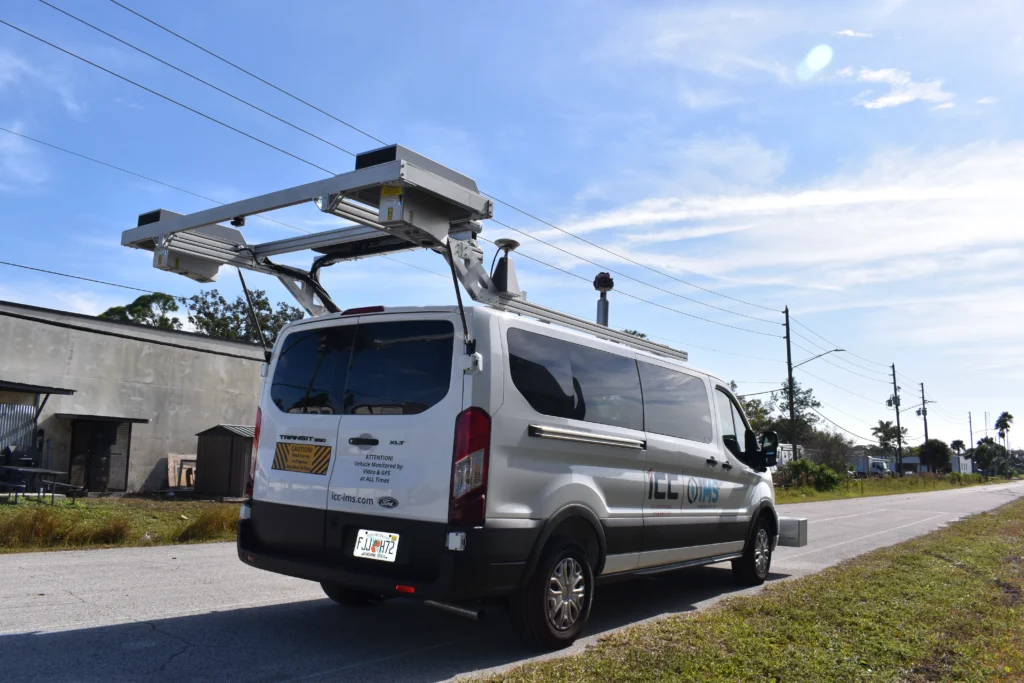

IrisPRO Pave Automated Data Collection Vehicle

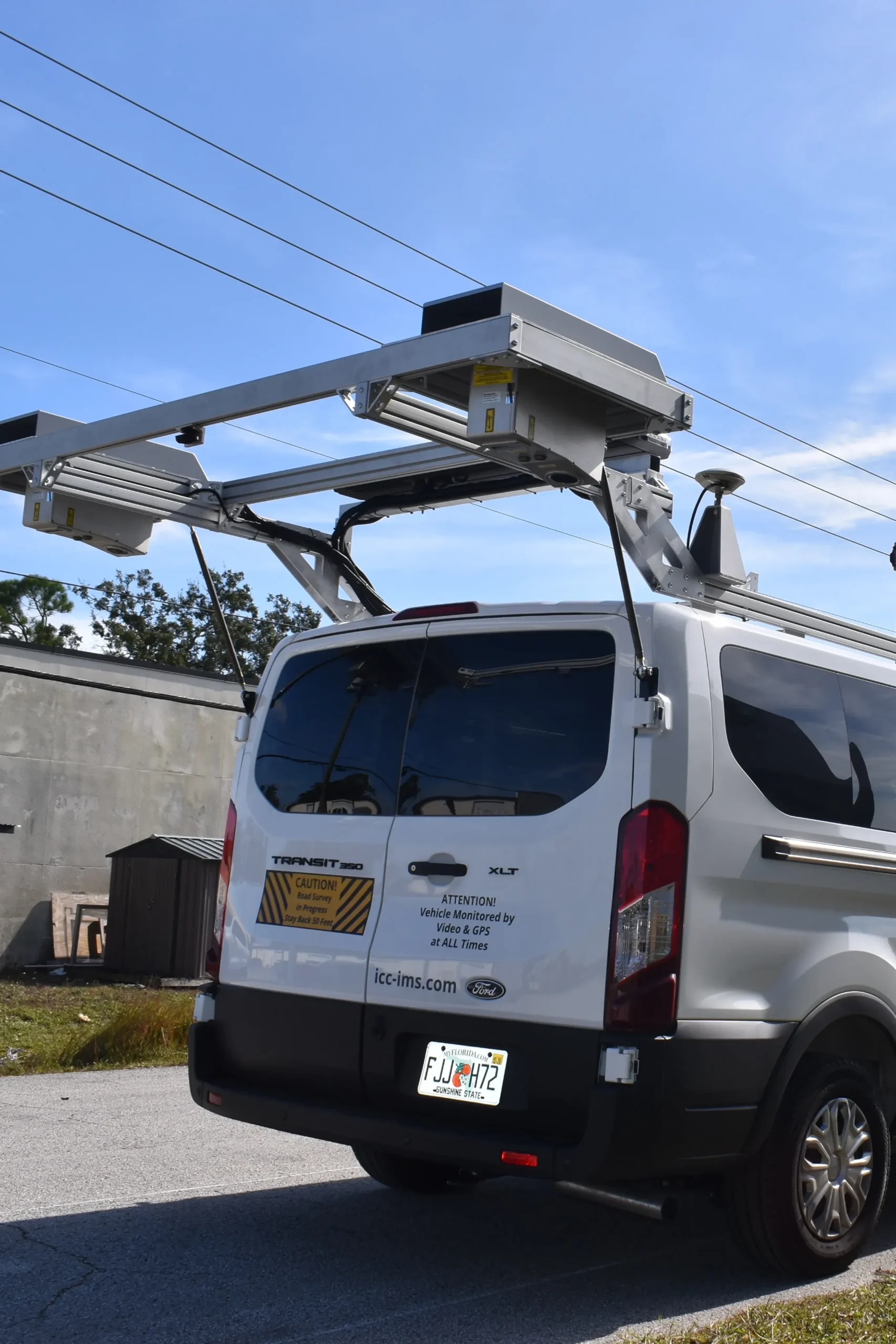

IrisPRO Pave’s 3D Pavement Imaging

IrisPRO Family of Integrated Solutions

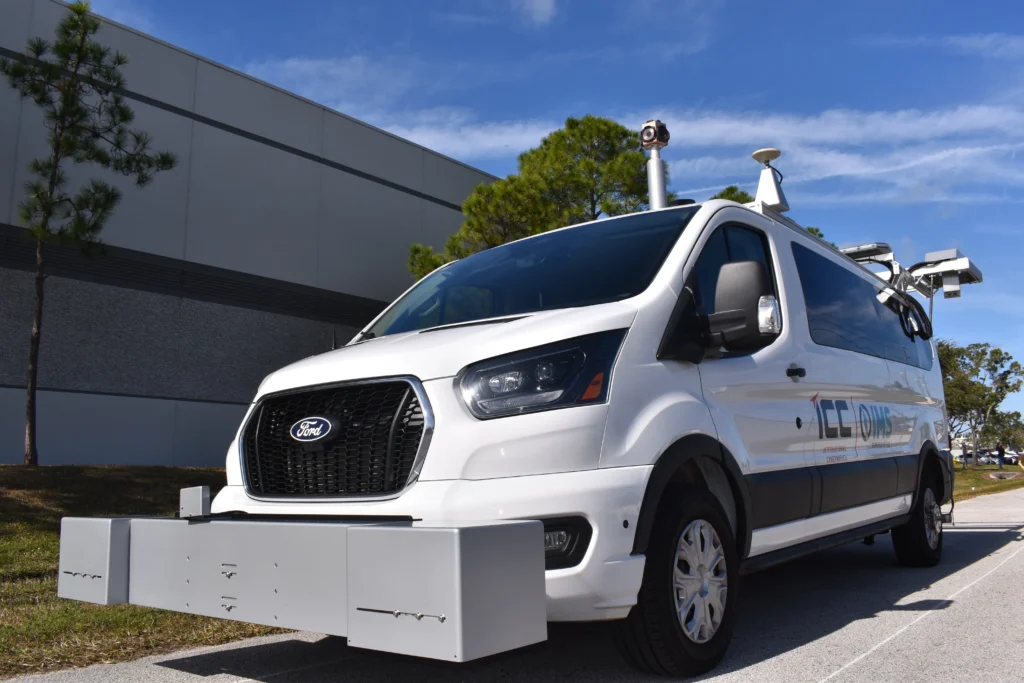

IrisPRO High Speed Profiler

Data Processing - Made Easier

Pavement data is available in higher resolutions and greater volumes than ever before. Processing this data efficiently and producing accurate and repeatable results has been a challenge for the industry. Until now.

With ICC Connect, one software application is all you need to process your collected data, match it to your roads, view it, compare it, and summarize it for upload into your Pavement Management System (PMS). You will be processing and analyzing data faster and more efficiently than ever before. Contact us today for a demonstration.

Position and Orientation

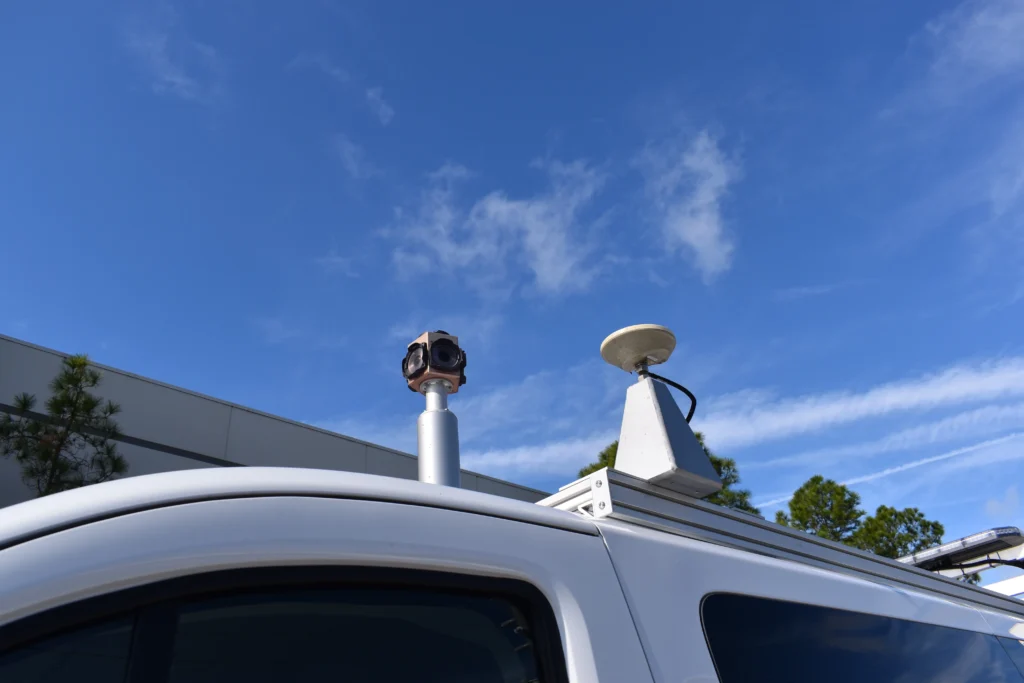

A high quality Hemisphere DGPS system is standard on ICC road survey vans. iXBlue and Applanix POS/LV INS options are also offered for accurate tracking under the most difficult GNSS conditions found in urban and mountaneous environments. These systems deliver uninterrupted positioning and orientation information with reliability in almost any environment.

Orientation data from an iXBlue or Applanix IMU is also required for accurate calculation of road geometry, including crossfall, grade, and horizontal curvature.

3D Pavement Imaging

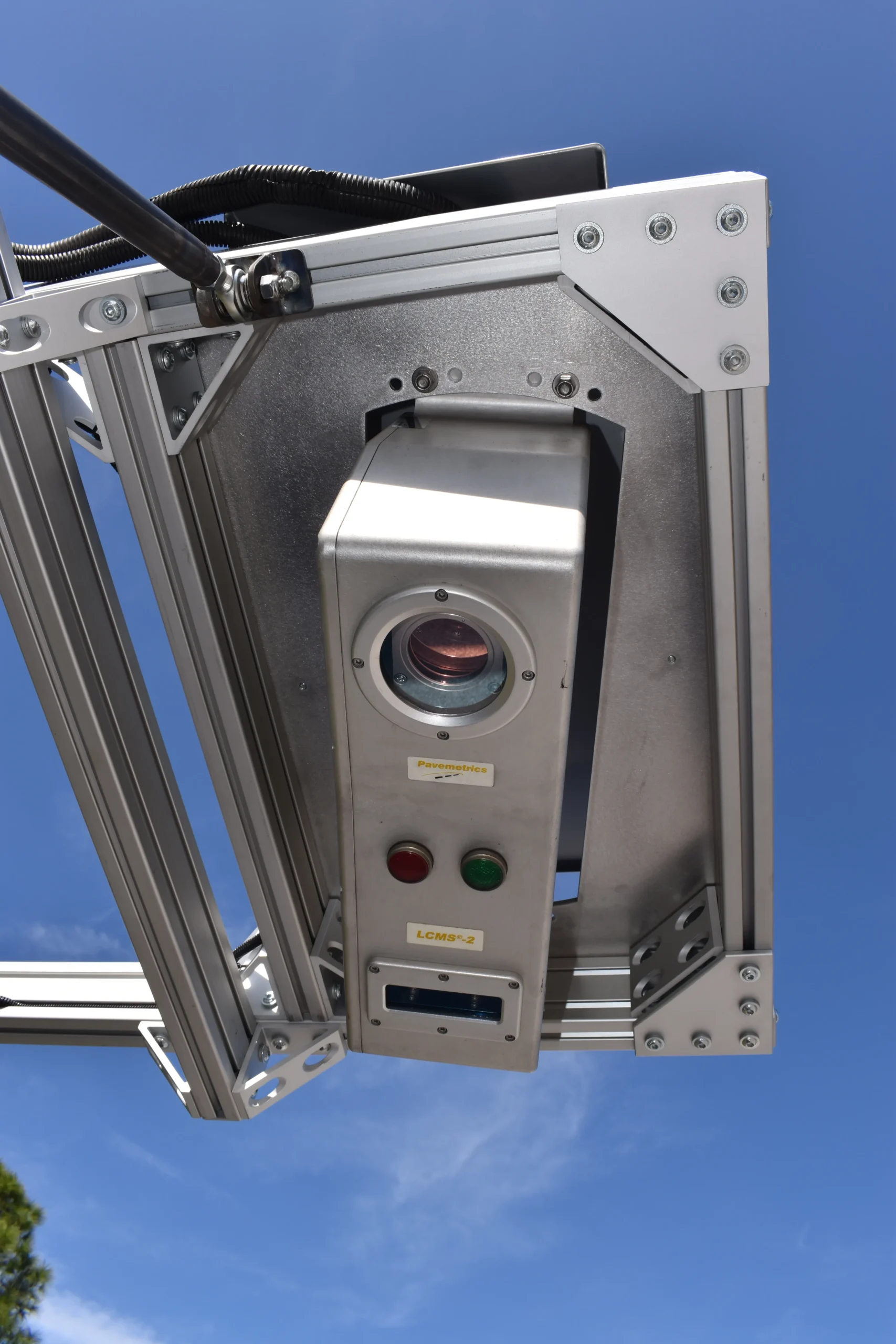

The Laser Crack Measurement System (LCMS) captures continuous 2D and 3D images at 1mm resolution in the lane of travel up to 4 m (13 ft) wide at highway speeds, allowing for the visualization and characterization of all features on the road surface. The system is at home on both asphalt and concrete surfaces.

The new generation LCMS-2 is now available with collection rates up to 28,000 profiles/s, five times faster than the LCMS-1. This allows smaller cracks, especially transverse cracks, to be detected more consistently than in the past. The vertical accuracy has also improved from 0.50 mm to 0.25 mm.

Right of way Imaging

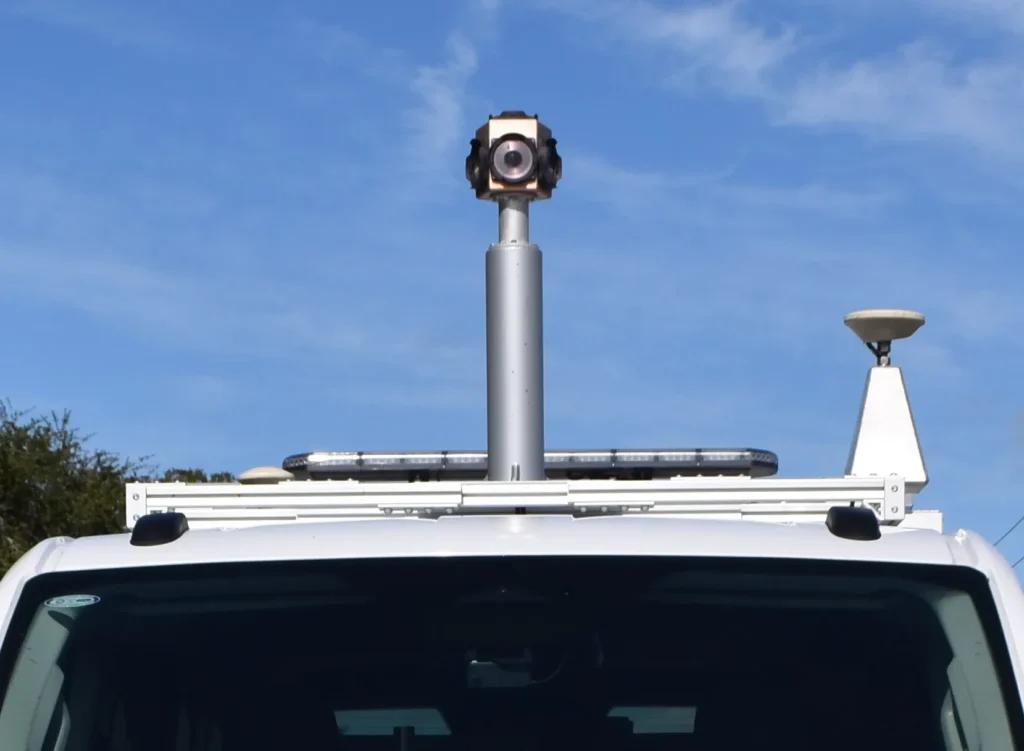

The new Ladybug 6 captures 72MP spherical images using six cameras for a 360-degree panoramic view of the roadway and surroundings. Ladybug 5+ captures 30MP images. The images can be viewed in 360 mode in our software, and individual directional images can be extracted at any desired camera angles.

The ICC collection platform also supports all Basler GigE cameras, with the most common option being the Basler Ace 4K 9MP or 12MP camera.

All cameras are triggered on a fixed-distance basis, image capture is precisely synchronized to GPSTime and DMI, and cameras are calibrated for asset inventory and geo-referenced measurements from the images.

Our clients

Iris Collection Core

The Collection Core is the heart of the Iris system. Custom-designed hardware and software come together to provide sub-millisecond synchronization between all systems including lasers, accelerometers, right-of-way cameras, computers, and pavement imaging systems.

IrisPRO

The IrisPRO inertial profiler is renowned for exceptional accuracy and repeatability, routinely far exceeding the requirements of AASHTO R56, TxDOT, and ASTM E950 certifications. The system is equipped with a target sensor for precise start/stop on control sites. Data can be easily exported and viewed in ProVAL and in ICC Connect.

Iris Cameras

The Iris is the eye in your IrisPRO Pave system. Context is everything when it comes to data. A quality right-of-way imaging system makes all the difference during data review and interpretation. Camera options include the popular FLIR Ladybug 6 72MP spherical camera, the Ladybug 5+ 30MP spherical camera, and the Basler Ace 9MP (4K) or 12MP camera.

Compare Ladybug 5+ images (left) with Ladybug 6 images (right) below.

Pavement data is available in higher resolutions and greater volumes than ever before. Processing this data efficiently and producing accurate and repeatable results has been a challenge for the industry. Until now.

With ICC Connect, one software application is all you need to process your collected data, match it to your roads, view it, compare it, and summarize it for upload into your Pavement Management System (PMS). You will be processing and analyzing data faster and more efficiently than ever before. Contact us today for a demonstration.

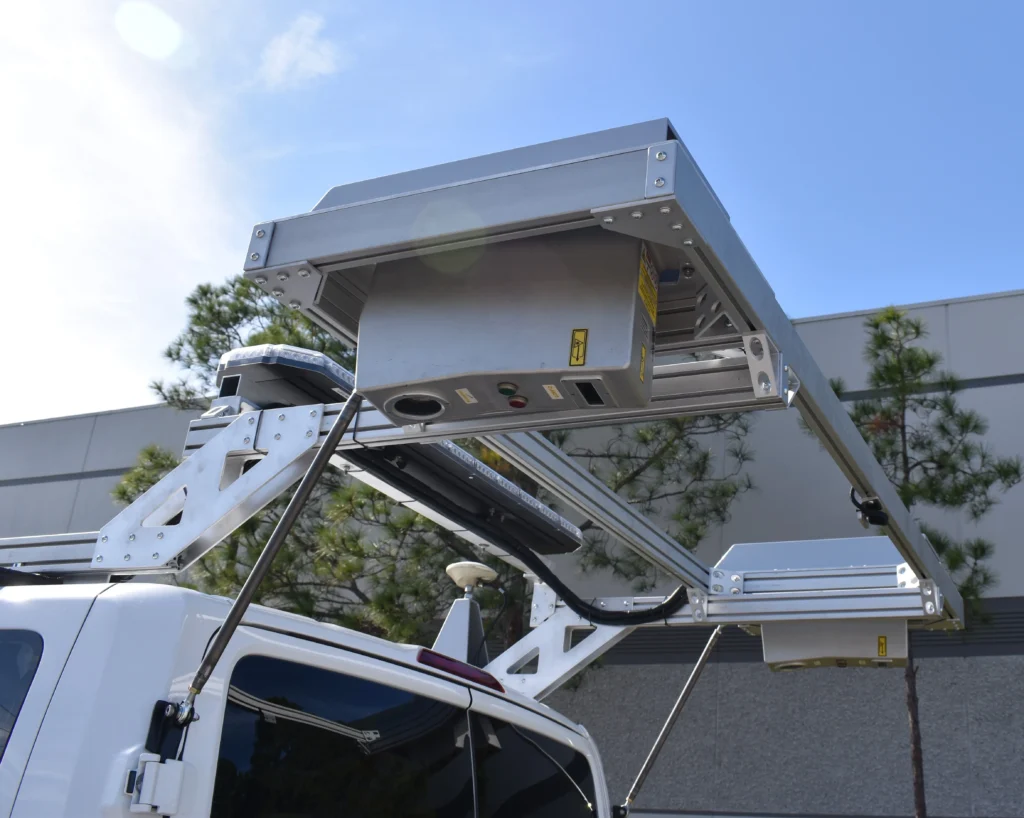

Fully Integrated LCMS

The Pavemetrics LCMS-2 is the industry standard in pavement imaging. With an IrisPRO Pave, the system is controlled as simply another module in the all-in-one Drive collection software. Integrated maps, mission management, real-time health monitoring, easily configurable longitudinal collection interval (1mm to 5mm), managed triggers, pause/resume, and preview images are all available to the operator.
